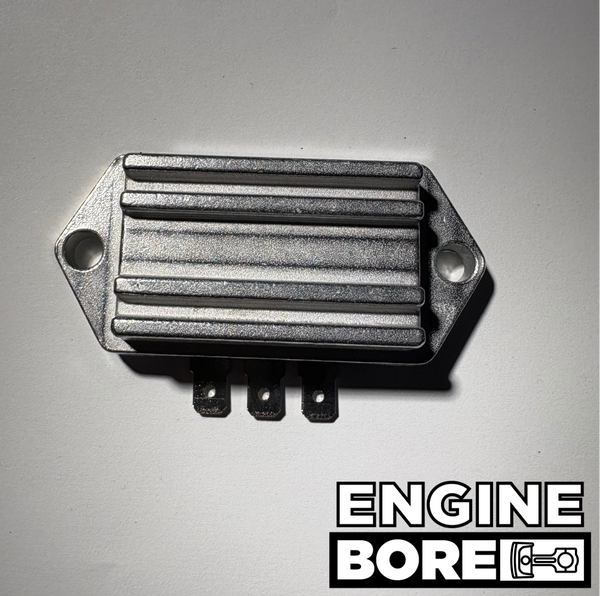

15 Amp Voltage Regulator Rectifier

15 Amp Voltage Regulator Rectifier for Kohler Engines

Keep your Kohler engine's electrical system running reliably with this quality-tested 15 amp voltage regulator rectifier. Designed for a wide range of Kohler K, M, CH, CV, KT, and MV series engines.

Quality Assurance You Can Trust:

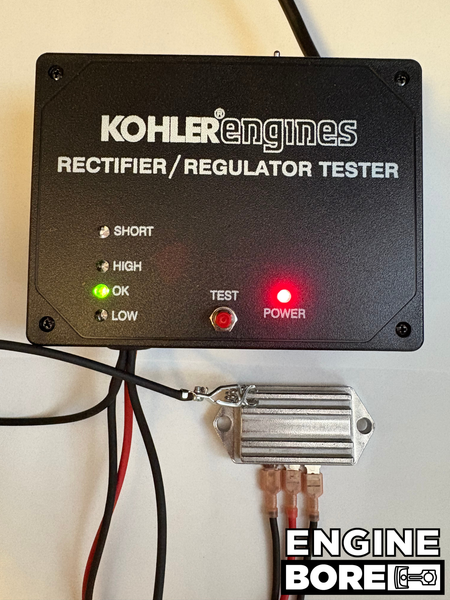

Every voltage regulator is bench tested before shipping with an authentic Kohler service diagnostic tester. This verifies correct output voltage and regulator function under load, so you receive a unit that is confirmed working—not just assumed to be.

Compatible Engine Models:

• K Series: K140, K141, K160, K161, K181, K241, K301, K321, K341, K361, K482, K532, K582
• M Series: M8, M10, M12, M14, M16, M18, M20
• CH Series: CH18, CH20, CH22, CH23, CH25, CH26
• CV Series: CV18, CV20, CV22, CV23, CV25, CV27
• KT Series: KT17, KT19
• MV Series: MV16, MV18, MV20

Replaces John Deere Part Numbers:

AM34738, AM106357, AM102596, MIA11665

Replaces Kohler Part Numbers:

2540303, 2540303-S, 2575503, 2575503-S, 2575503S, 4140301, 4140303, 4140303-S, 4140304, 4140305, 4140306, 4140306-S, 4140308, 4140308-S, 4140309, 4140309-S, 4140310, 4140310-S, 234279, 41-403-01, 41-403-04, 41-403-05, 41-403-09, 41-403-09-S, 41-403-10-S, 25-755-03, 25-755-03-S, 25-755-03S

Specifications:

• Output: 15 amp

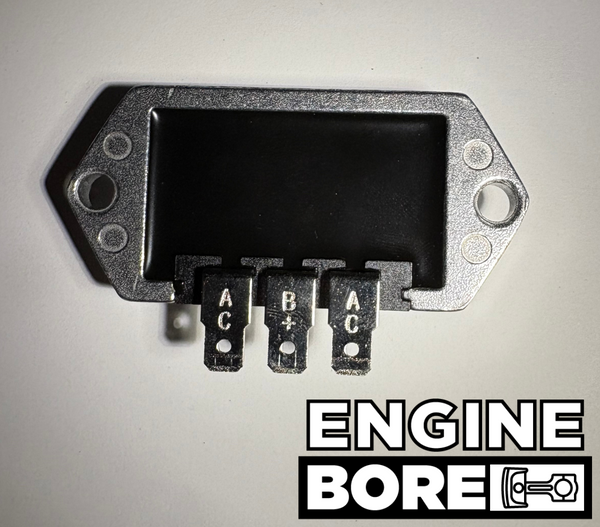

• Terminals: AC, B+, AC (3 terminals in a row)
• Replaces early style box regulators
• Material: Metal construction
• Color: Silver

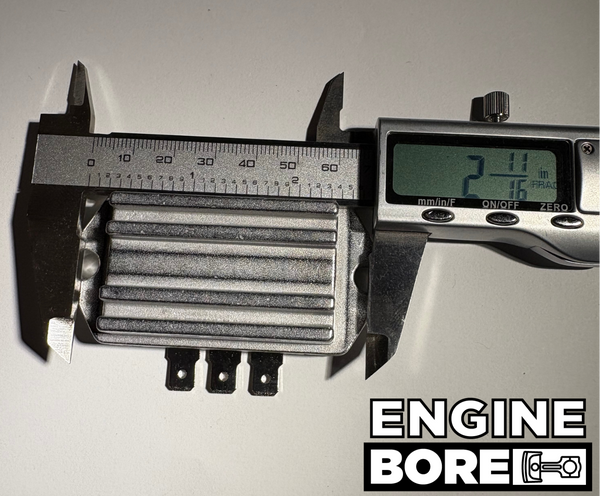

• Size: 80mm (L) x 37mm (W) x 19mm (H)

Key Features:

• Bench tested with authentic Kohler diagnostic equipment
• Verified voltage output and load performance
• Quality construction for long-lasting durability
• Direct replacement for OEM voltage regulators
• Compatible with John Deere tractors and Kohler-powered equipment

Why Choose This Voltage Regulator:

• Prevents battery drain and charging issues
• Ensures stable electrical system performance
• Pre-tested for peace of mind
• Compatible with multiple Kohler engine series
• Fits a wide range of applications

Whether you're maintaining a John Deere garden tractor, generator, or other Kohler-powered equipment, this voltage regulator provides the reliable electrical performance your engine needs.
