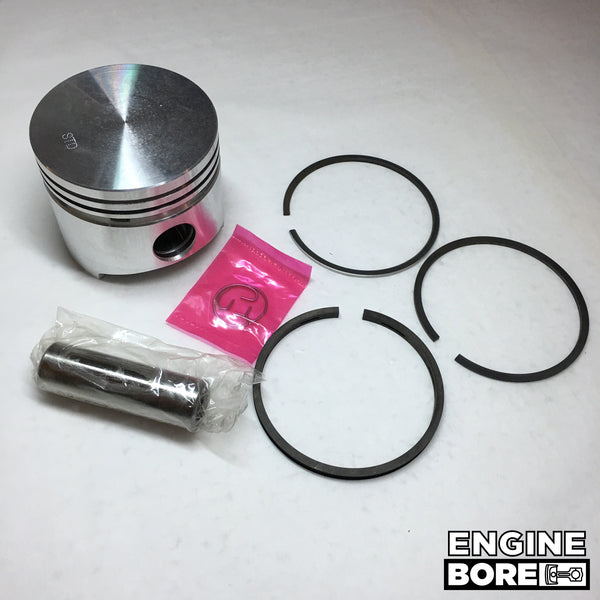

Kohler K241 K482 M10 Piston Assembly - Style A 10HP 3.251" | 47-874-01-S

Complete Style A piston assembly for Kohler K241, K482, and M10 10HP engines with 3.251" bore. This comprehensive assembly includes Style A piston, Style A rings, wrist pin, and clips - everything needed for piston replacement.

Assembly Includes:

• Style A piston
• Style A piston rings
• Wrist pin
• Wrist pin clips

Compatible Engines:

• Kohler K241 (10HP) - 3.251" bore
• Kohler K482 (18HP Twin) - 3.251" bore
• Kohler M10 (10HP Magnum) - 3.251" bore

Piston Sizes Available (3.251" Bore - Style A):

Standard (3.251"):

• 47-874-01-S

.010" Oversize (3.261"):

• 47-874-03-S

.020" Oversize (3.271"):

• 47-874-04-S

.030" Oversize (3.281"):

• 47-874-05-S

.040" Oversize (3.291"):

• Available upon request

Important Notes:

• Please select size from dropdown - Standard size ships if no selection made
• Oil control ring set might differ from picture
• Complete assembly includes piston, rings, wrist pin, and clips
• This is a Style A piston assembly
• Compatible with Style A piston rings sold separately on our site
• Oversizes for rebored cylinders
• Measure cylinder bore to determine correct size
• 3.251" bore engines only

Complete Style A piston assembly solution for Kohler K241, K482, and M10 10HP engines. Everything you need for piston replacement in one comprehensive assembly.
